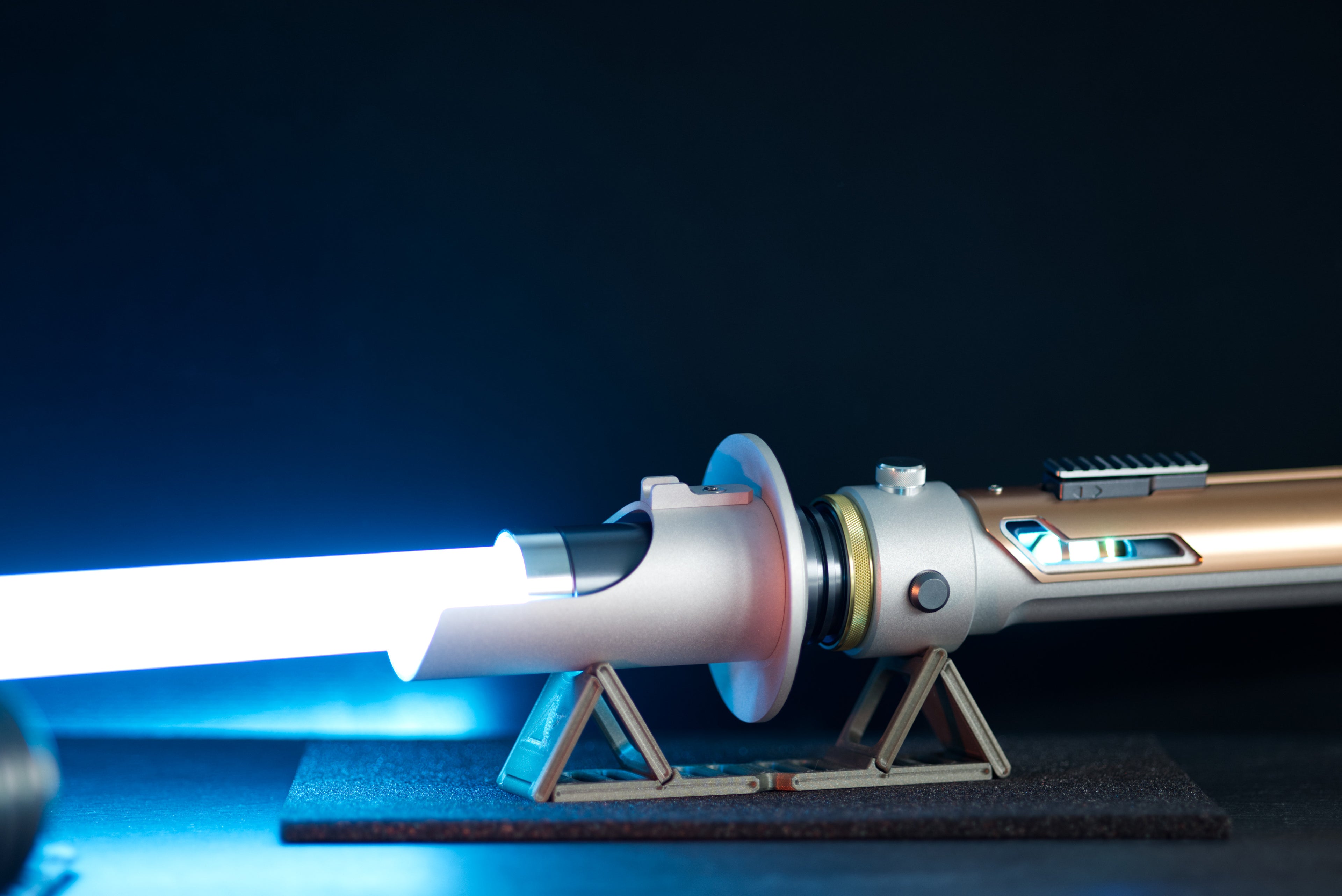

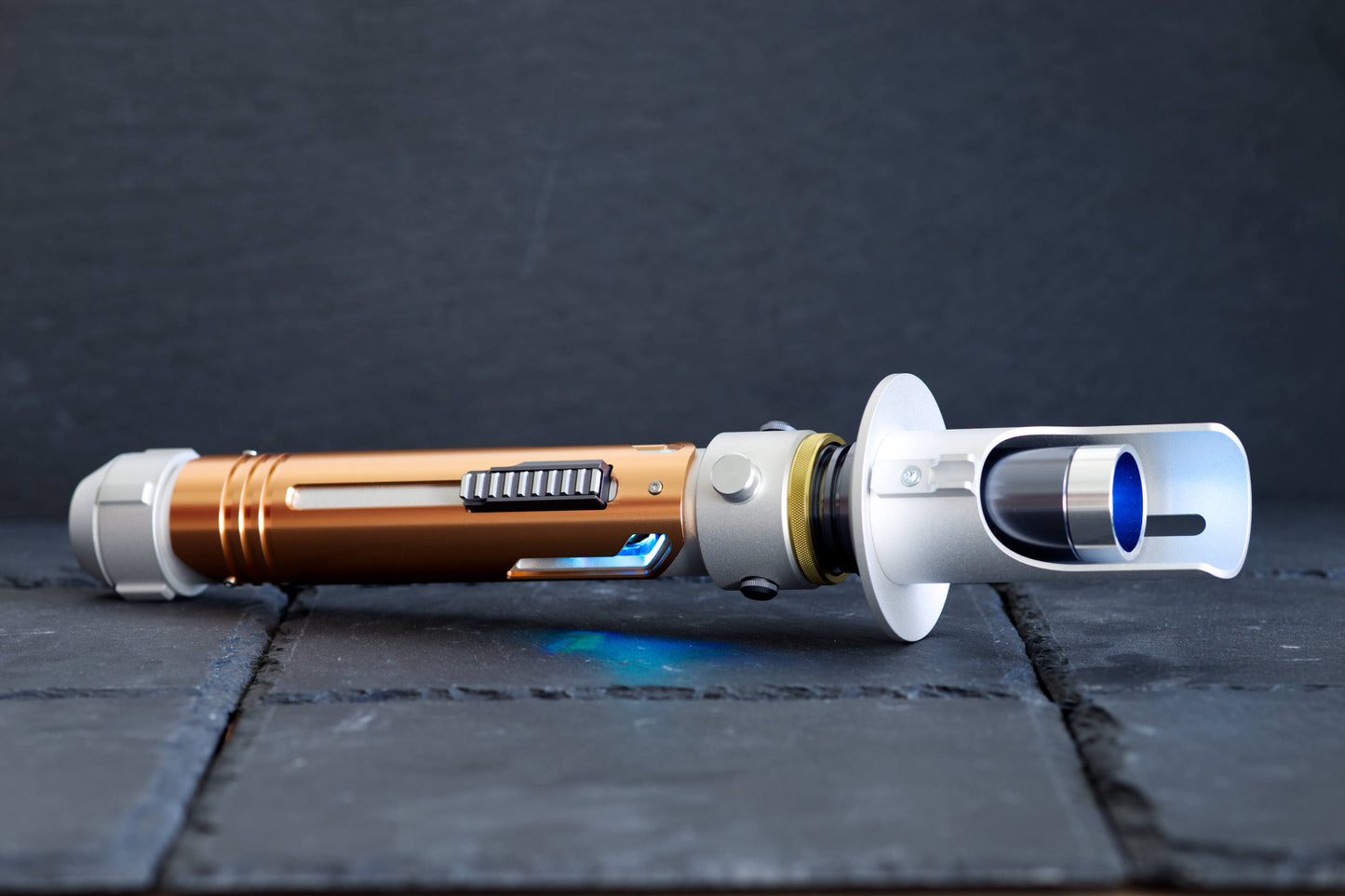

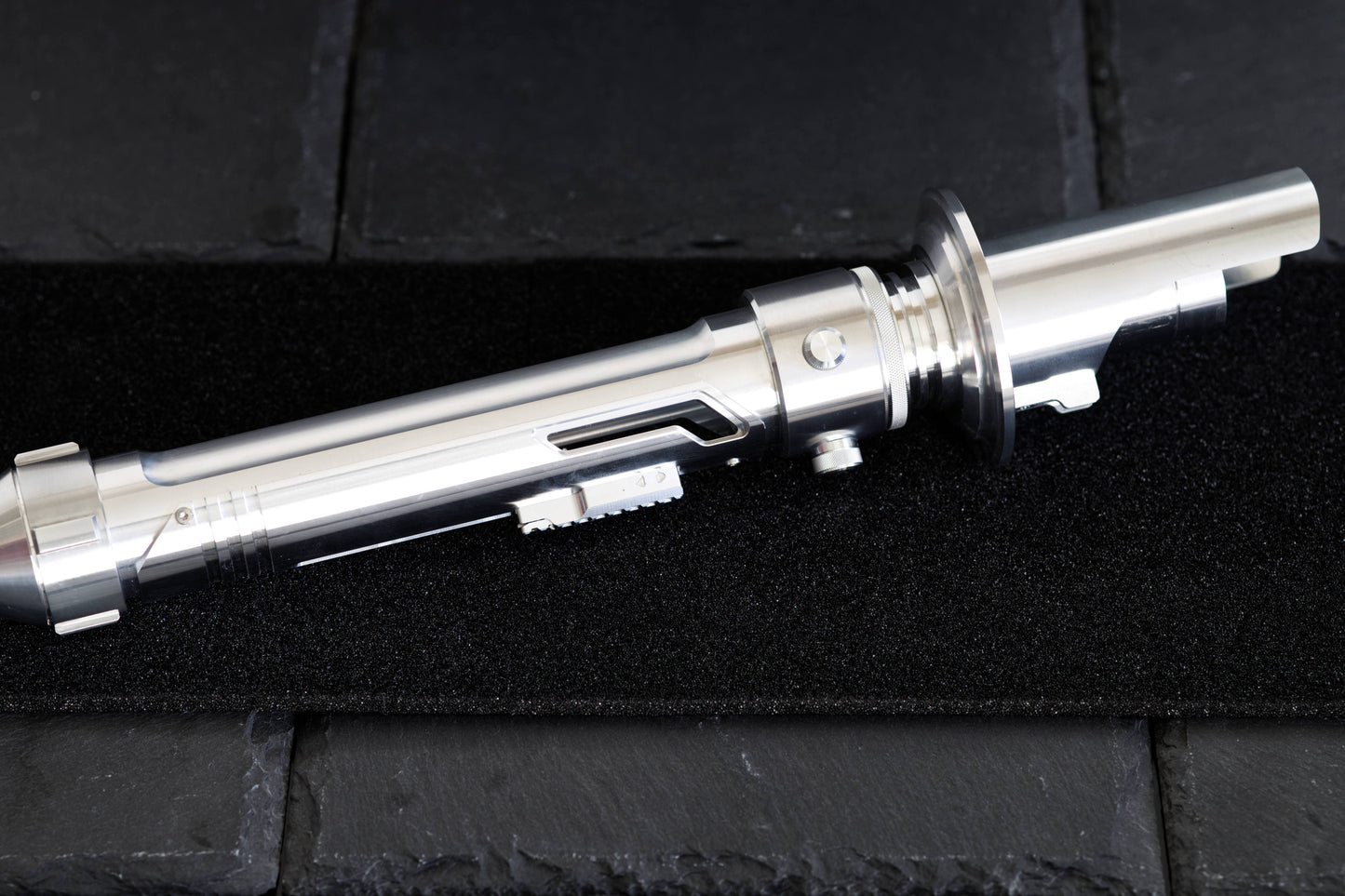

Check out how incredibly well it turned out 🤯 I designed this saber from the ground up, basing it on the real hilt in Rebels. Though I was not finished there, this was just the beginning 😏.

Once the design reached canon level it was time to add the AzSabers design language. Obviously I added the obligatory emitter detach mechanism and sprinkled the hilt with small details that make it uniquely what you’ve learned to expect from AzSabers.

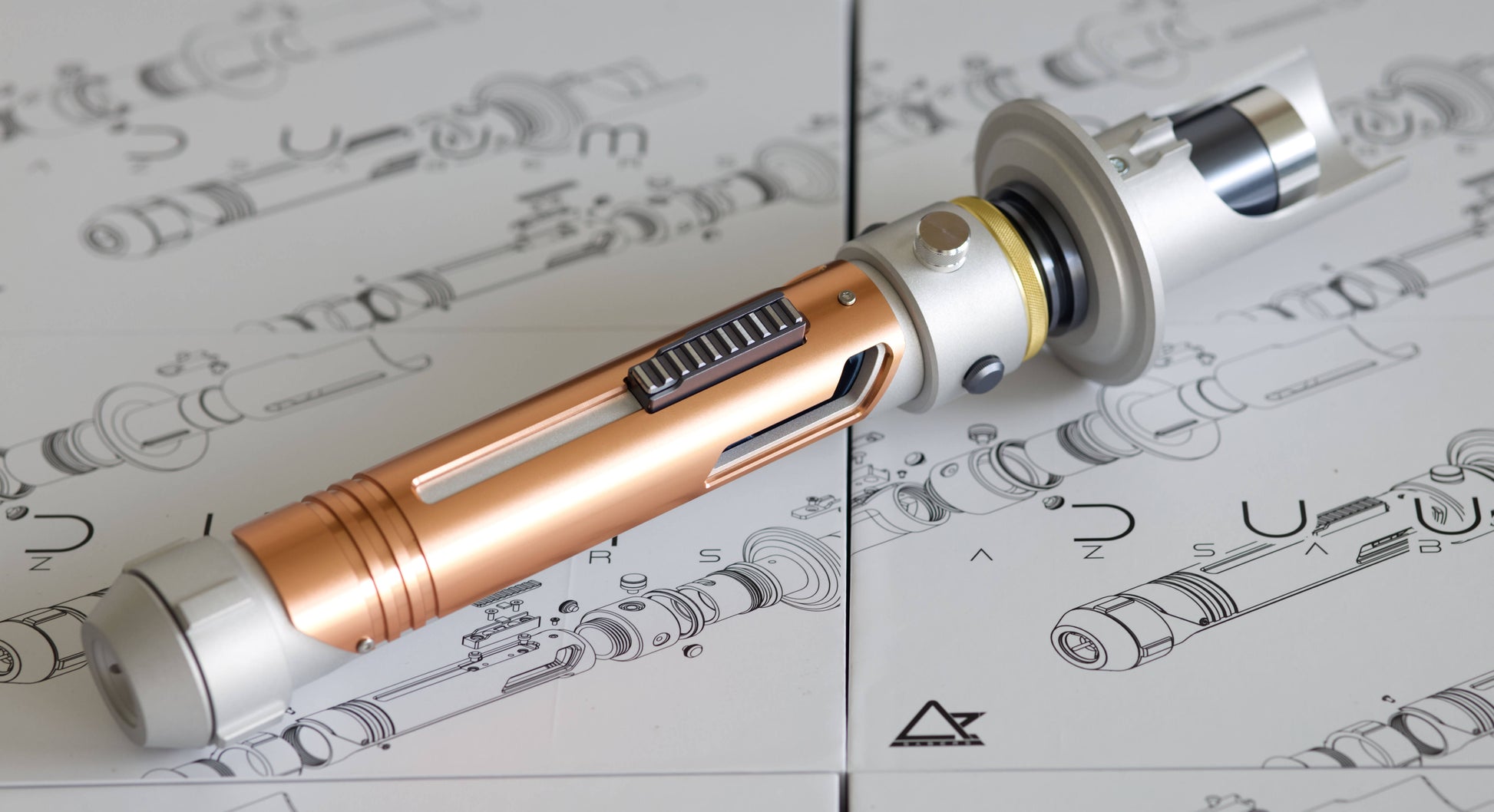

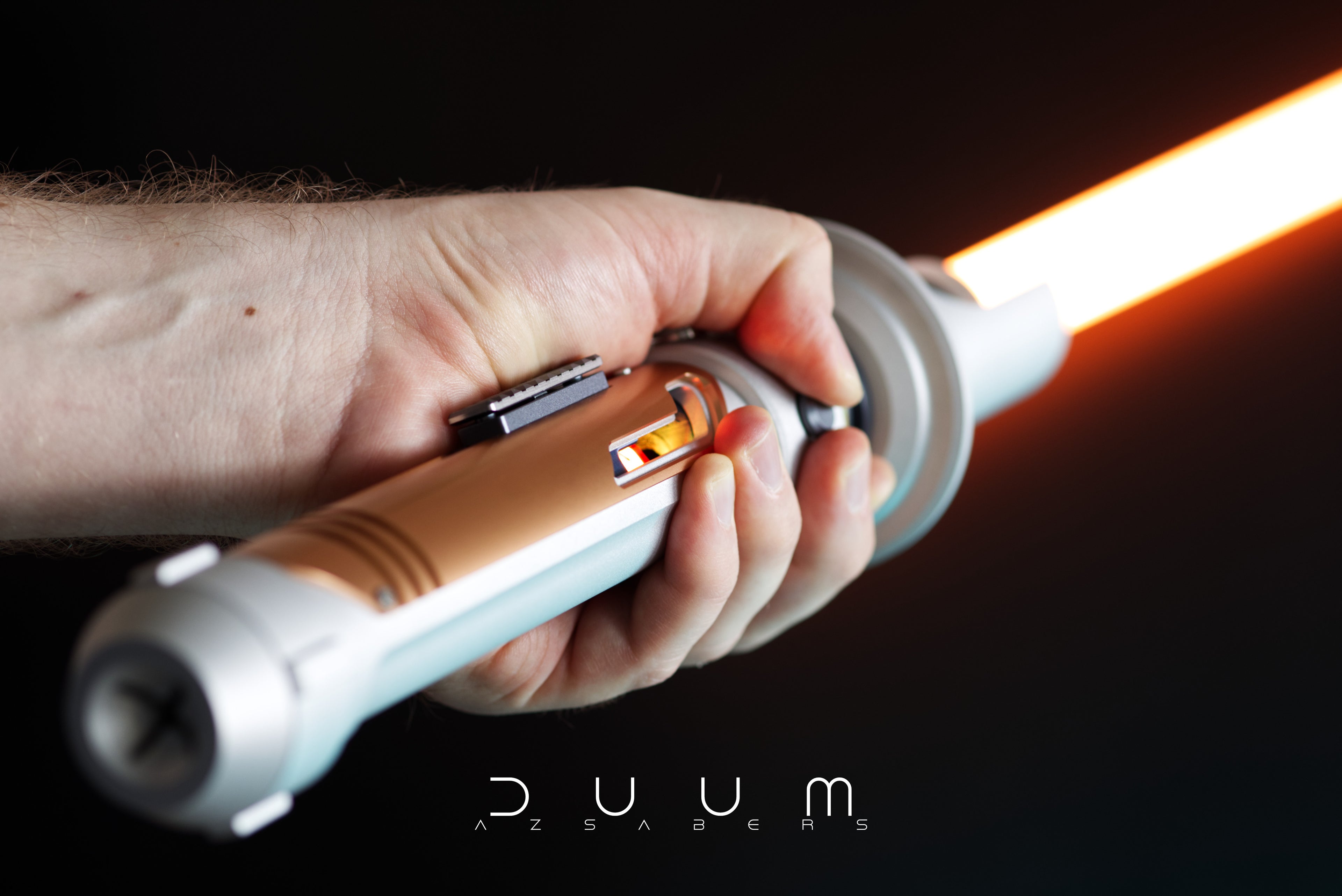

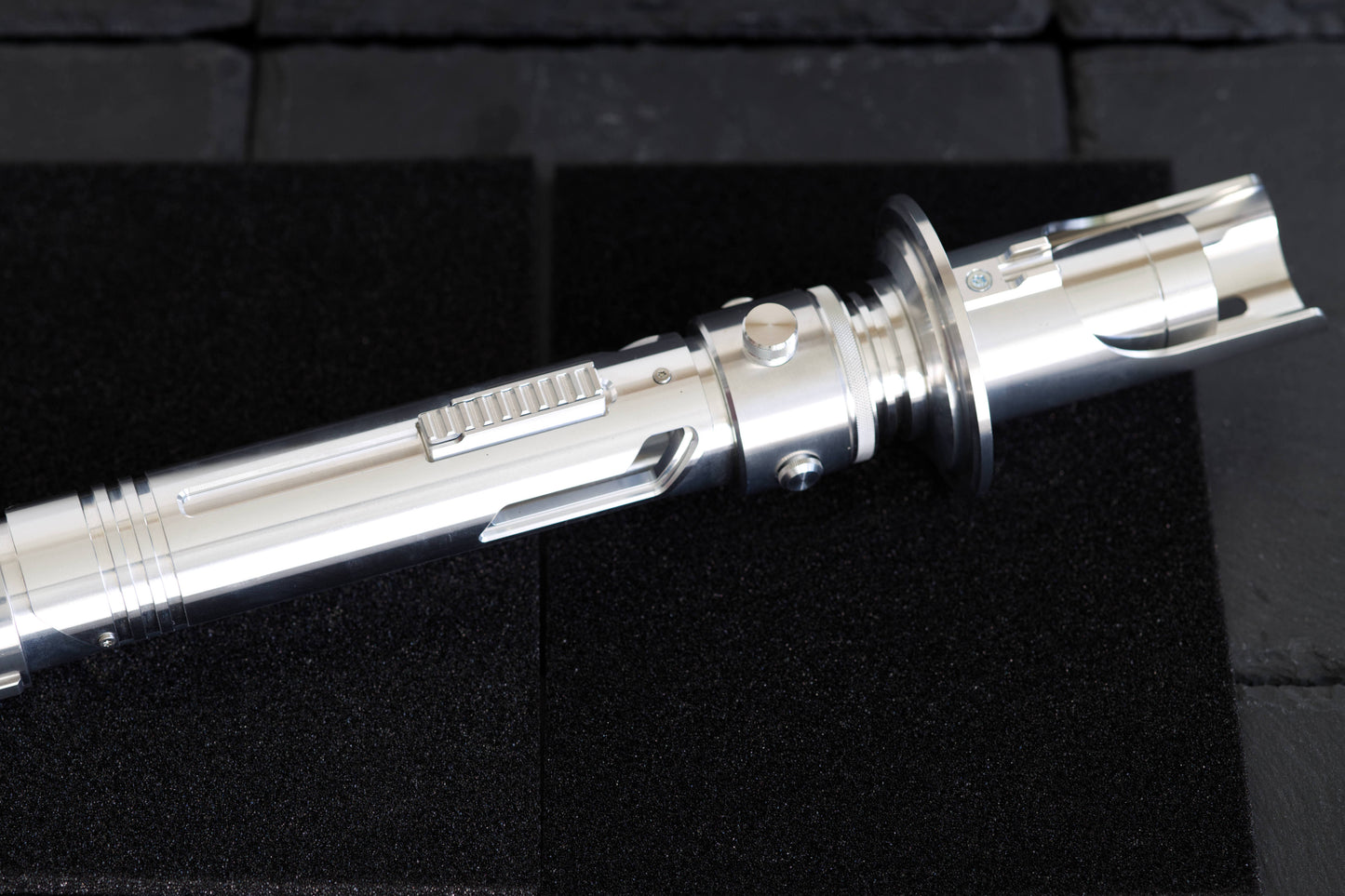

Just look at how beautifully the slot vents in the grip have been machined 😍. These are the eye catchers of this magnificent saber, making it truly unique. It allows for the internals to shine ✨. As you can see, I took a drastic departure from the green colour scheme of the original and re-envisioned the saber as a predecessor. Giving it a more divine and regal, perhaps sophisticated look.

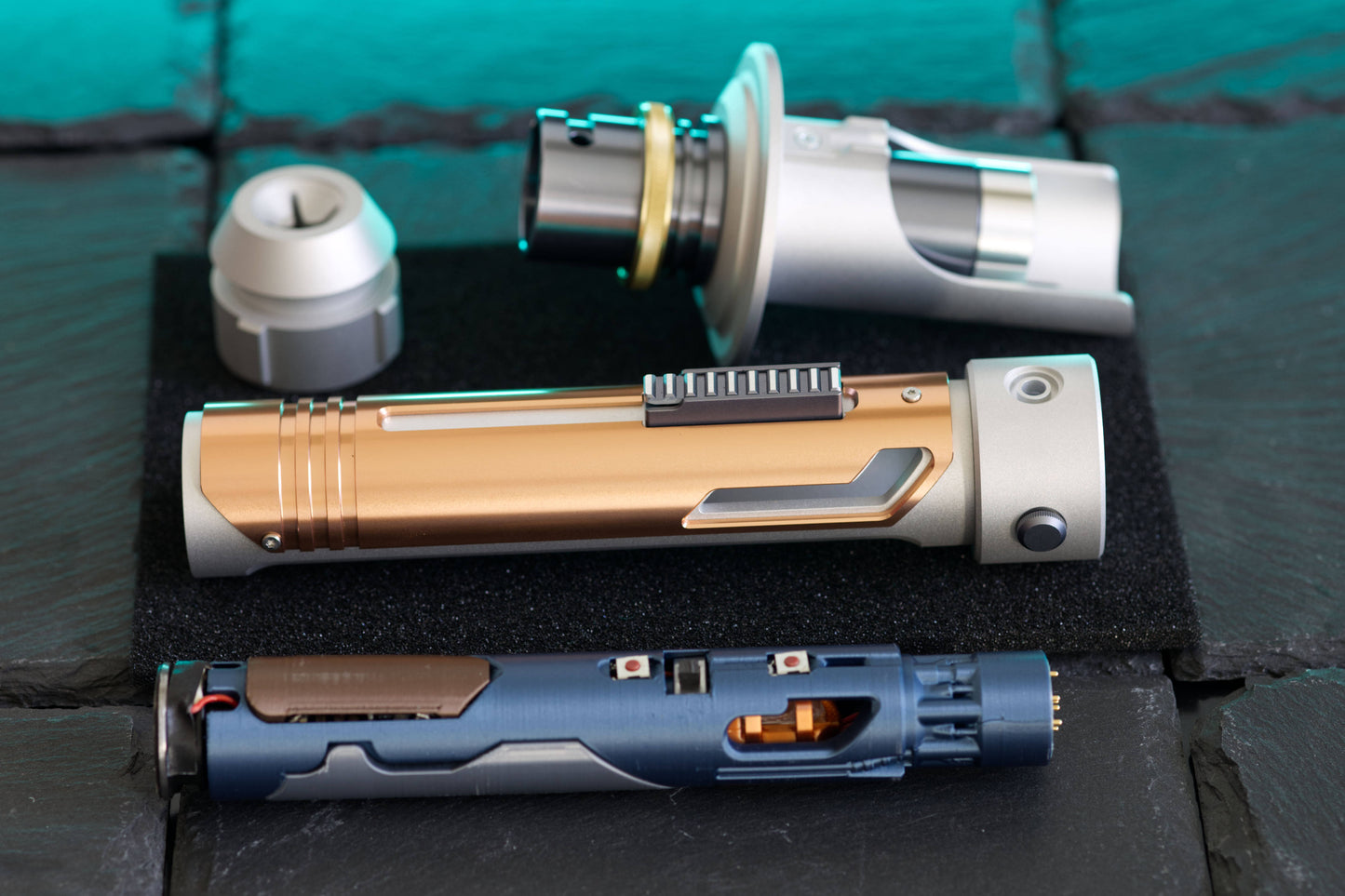

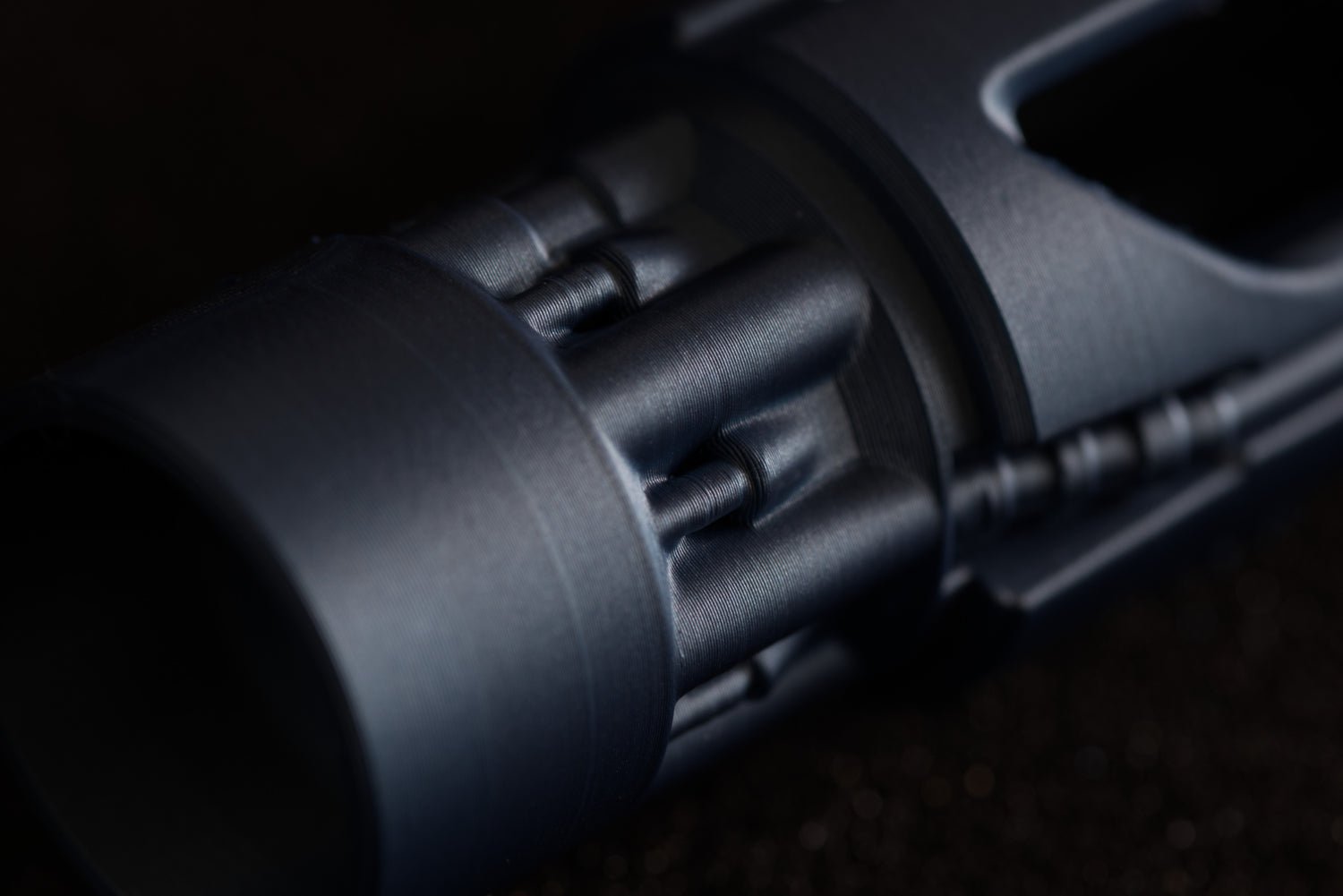

As expected, you can look forward to a completely removable chassis with crystal chamber and the renowned AzSabers sound experience. 🔊💥

This is the most complex saber I’ve designed and it is packing with features and details.

Here is an overview:

• This is our most complex hilt to date, featuring over more than 22 metal parts and a cool interlocking mechanism for the emitter.

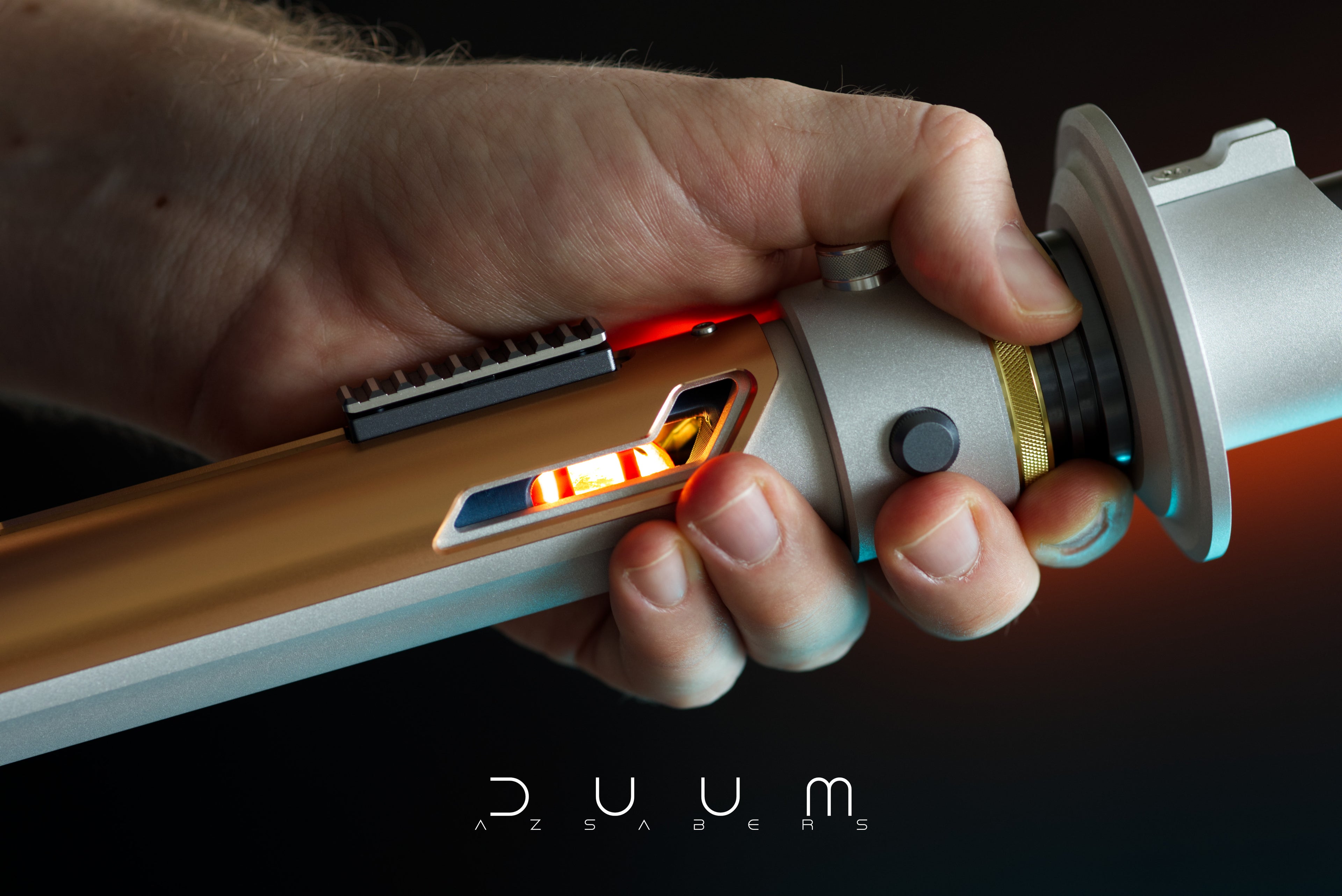

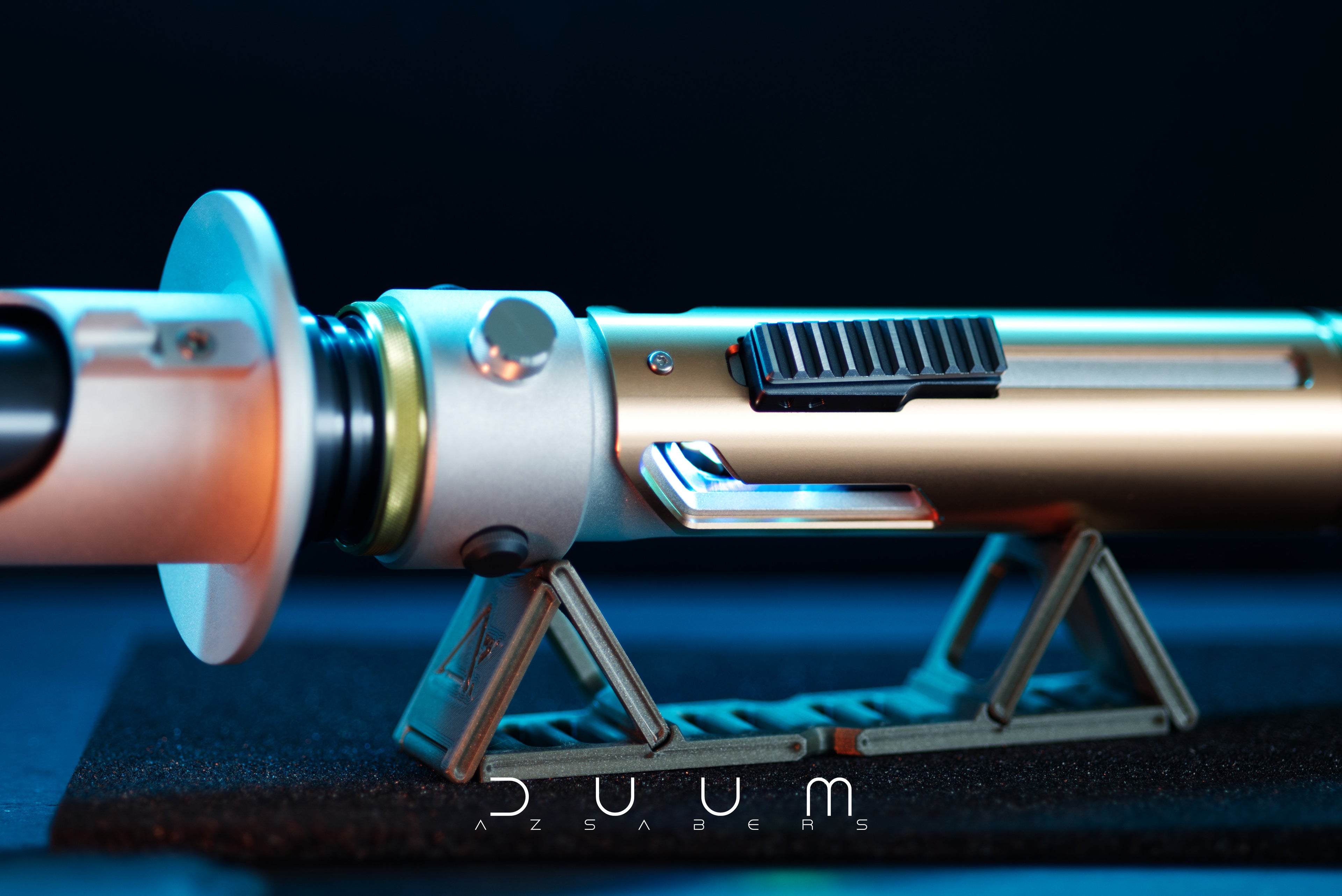

• This is our first 2 button setup. You have the main and auxiliary switch accessible at the switch box.
• The switches are spring loaded plungers.
• It accepts a regular 1inch blade.
• 28mm internal grip diameter.
• Designed for a 27mm high bass speaker.

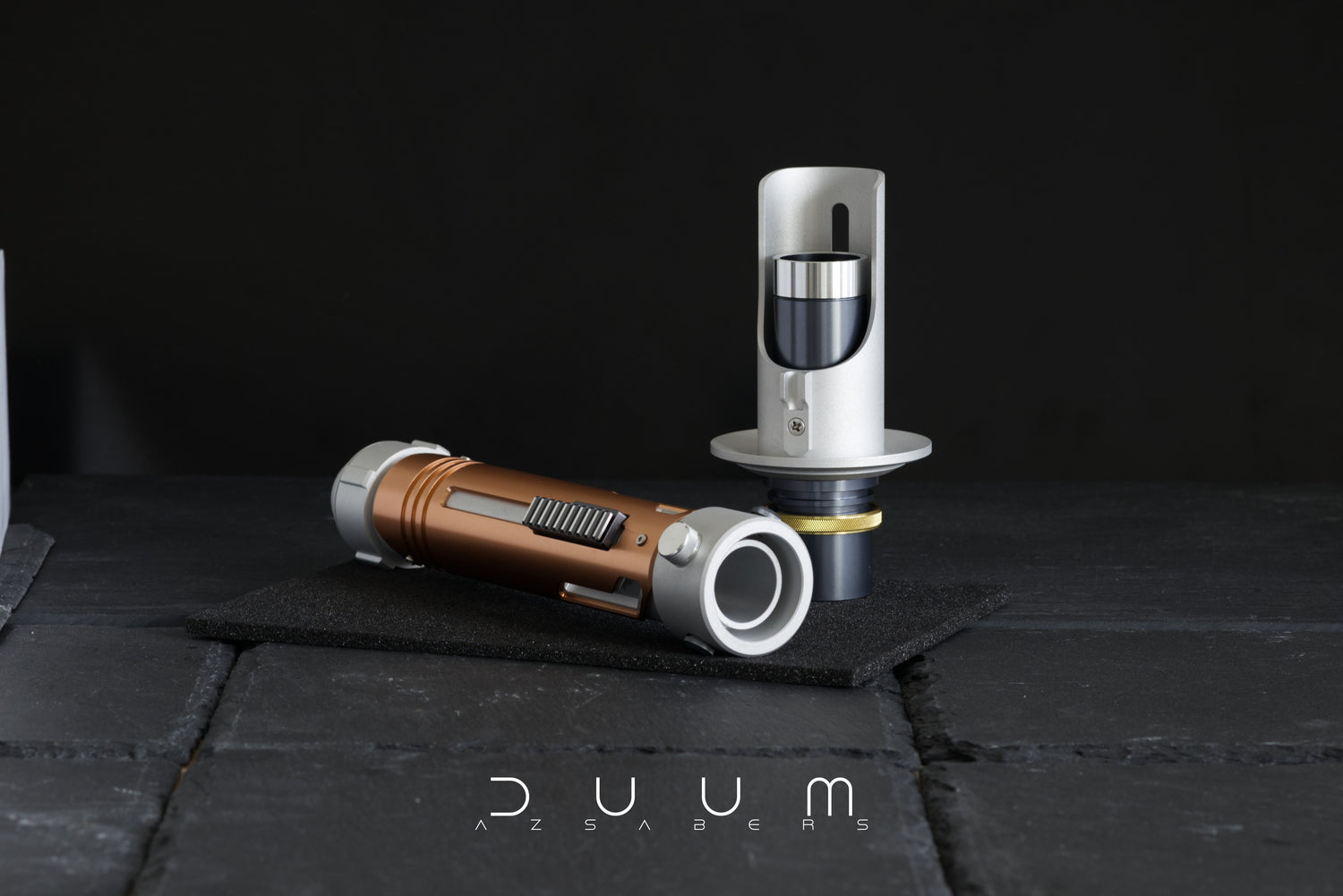

• Screw-less removability of the Emitter

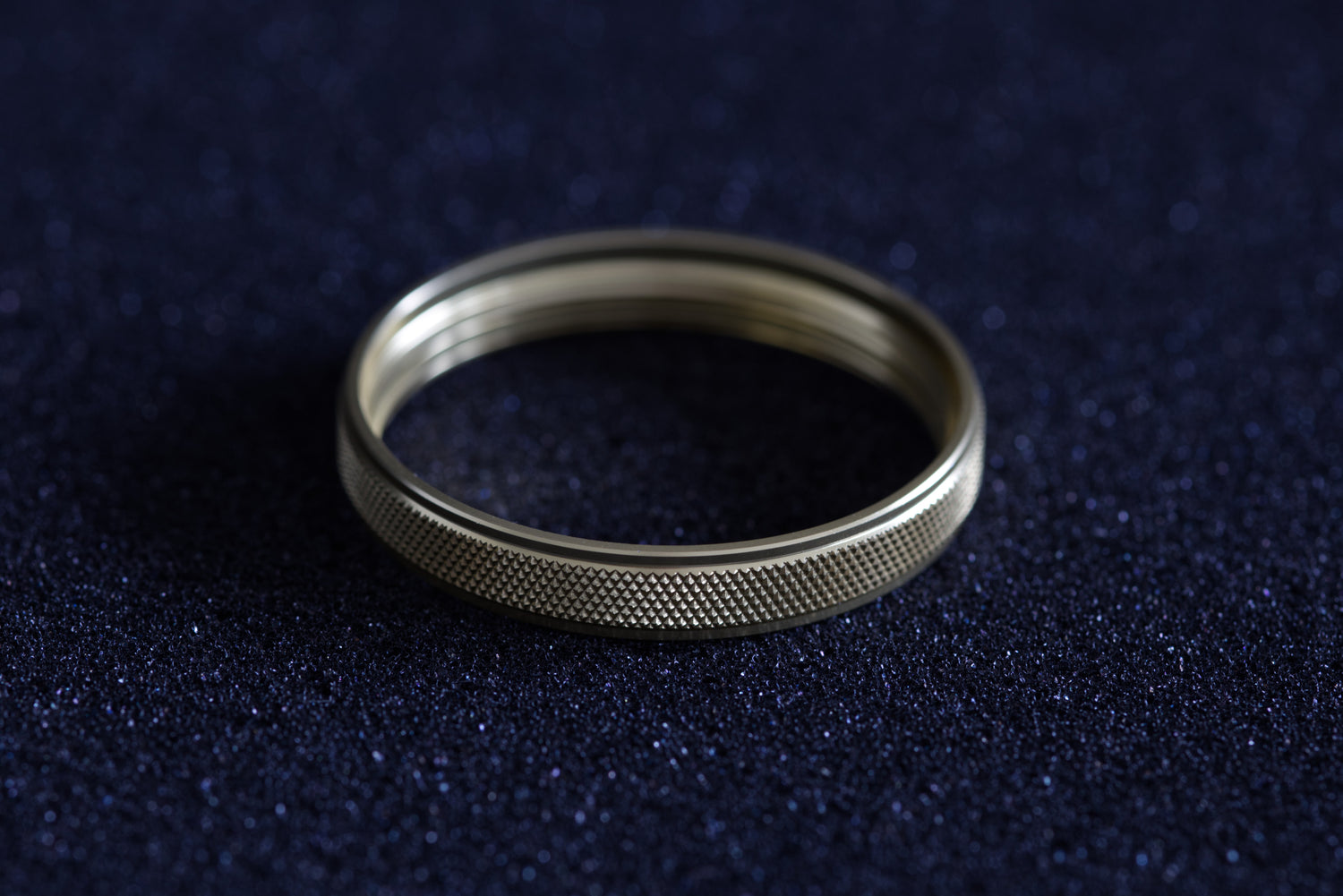

• The knurled golden ring accent serves as detailing and as mechanism for securing the emitter assembly to the hilt.
• + 2 additional screws to reinforce the emitter in case you are about to have the duel of the fates.
• They come standard installed as non functional and are hidden under the 2 accent parts.
• Non visually interrupting blade retention screw (M4).

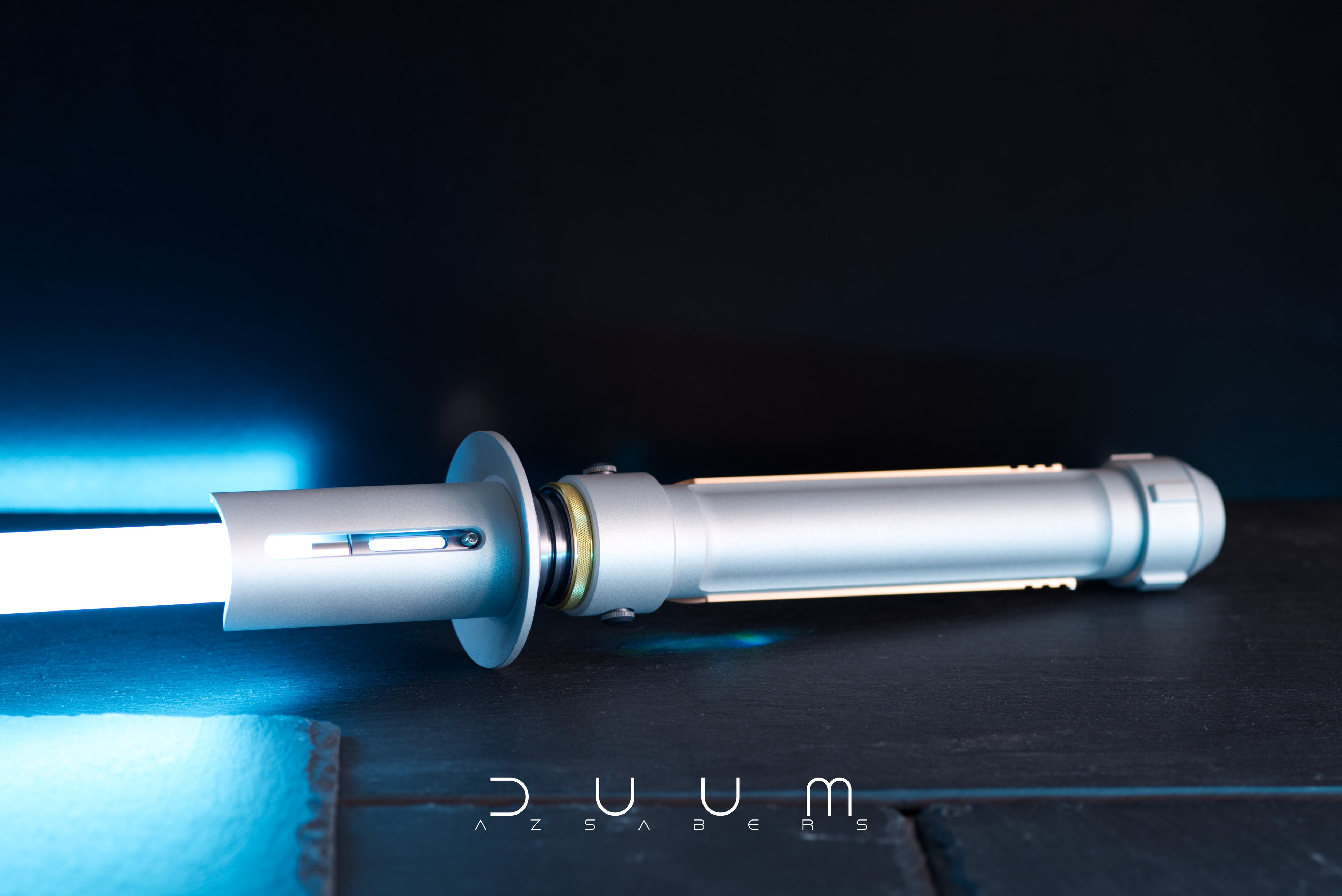

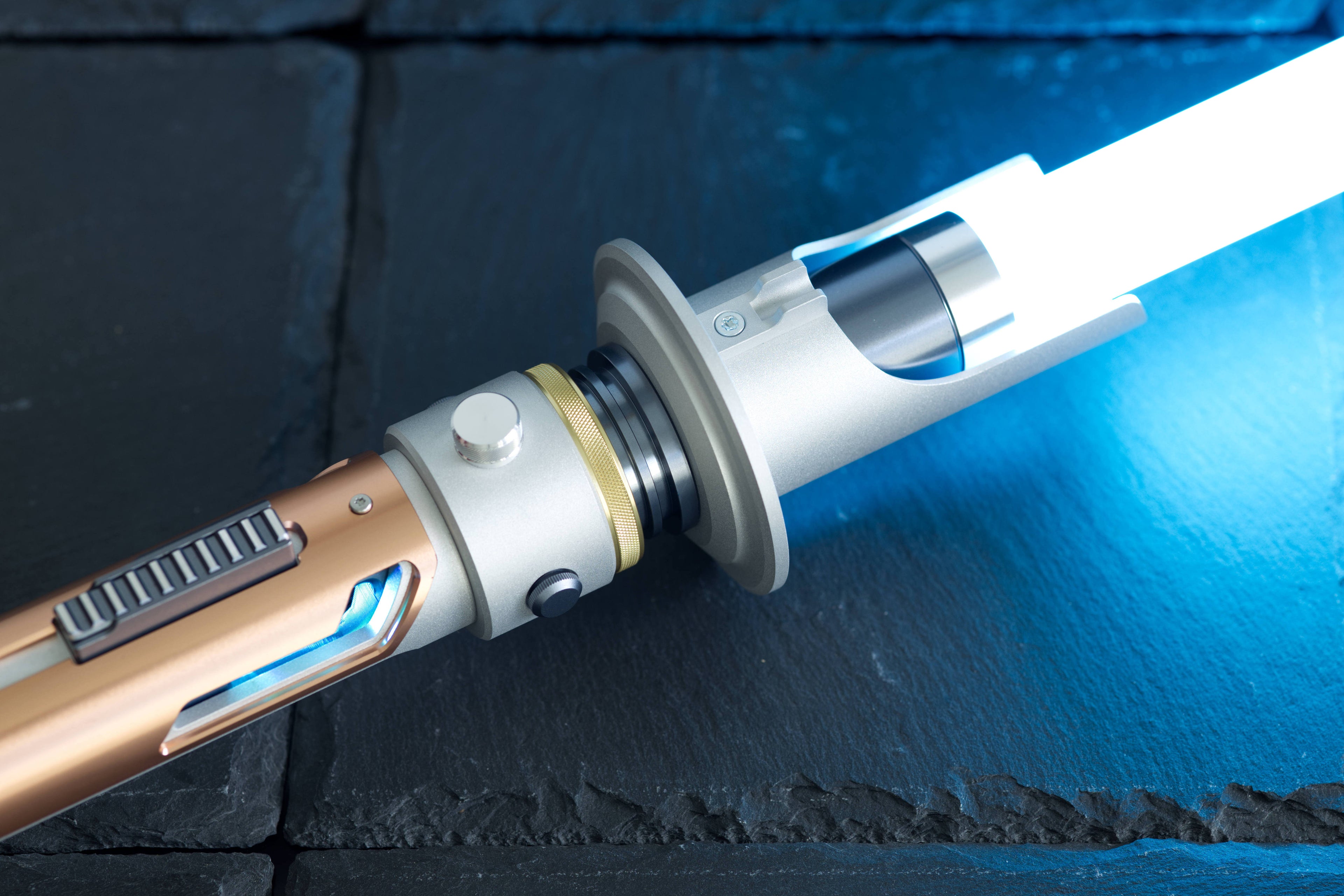

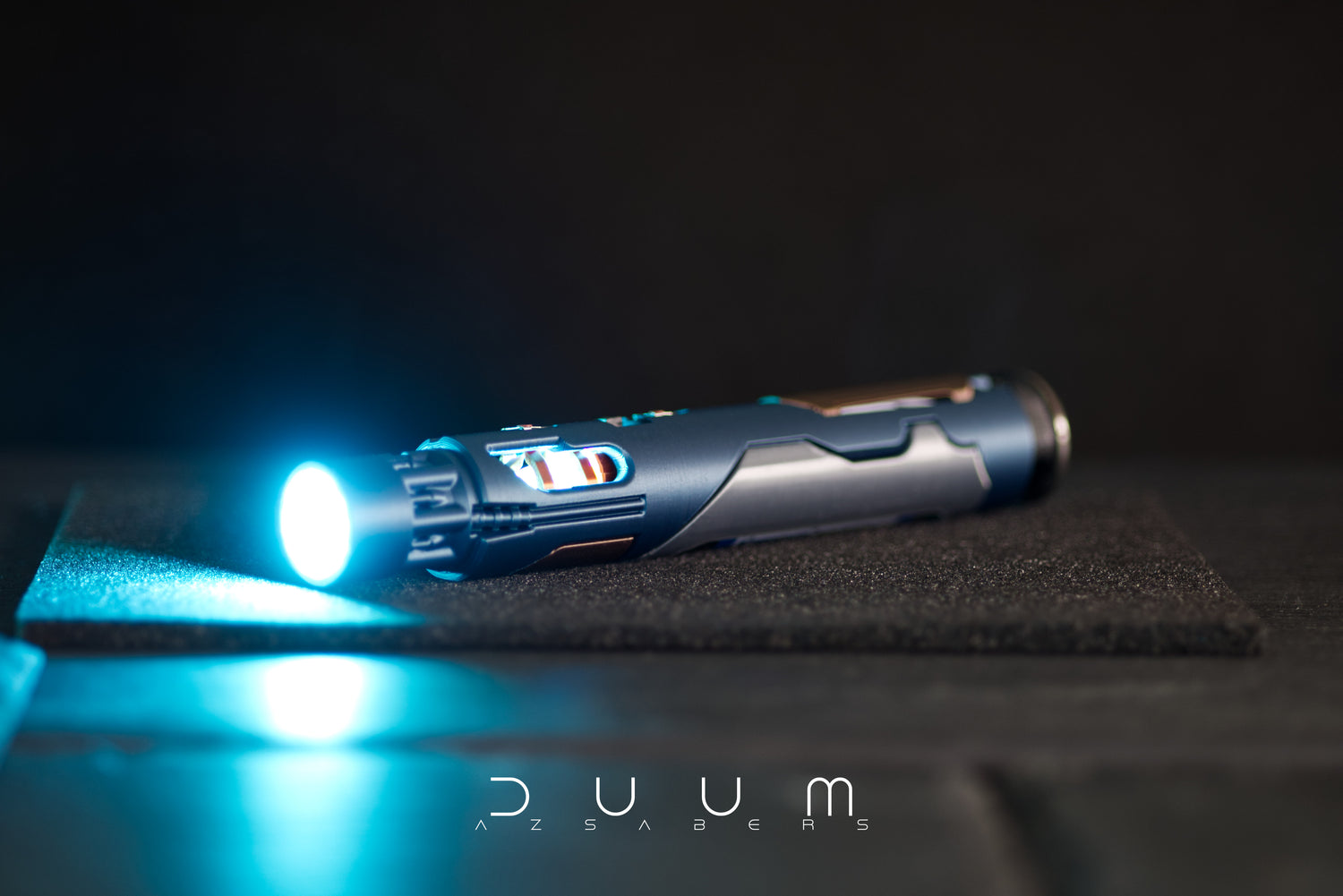

• Beautifully machined emitter accent window in the shroud and emitter core allowing for shine through of the blade or blade plug.
• Naturally clean, non-fingerprintable surface finish, cause who likes to see fingerprints all over.
• Clock-able Pommel Ring. Allowing for easy alignment of the pommel fins.

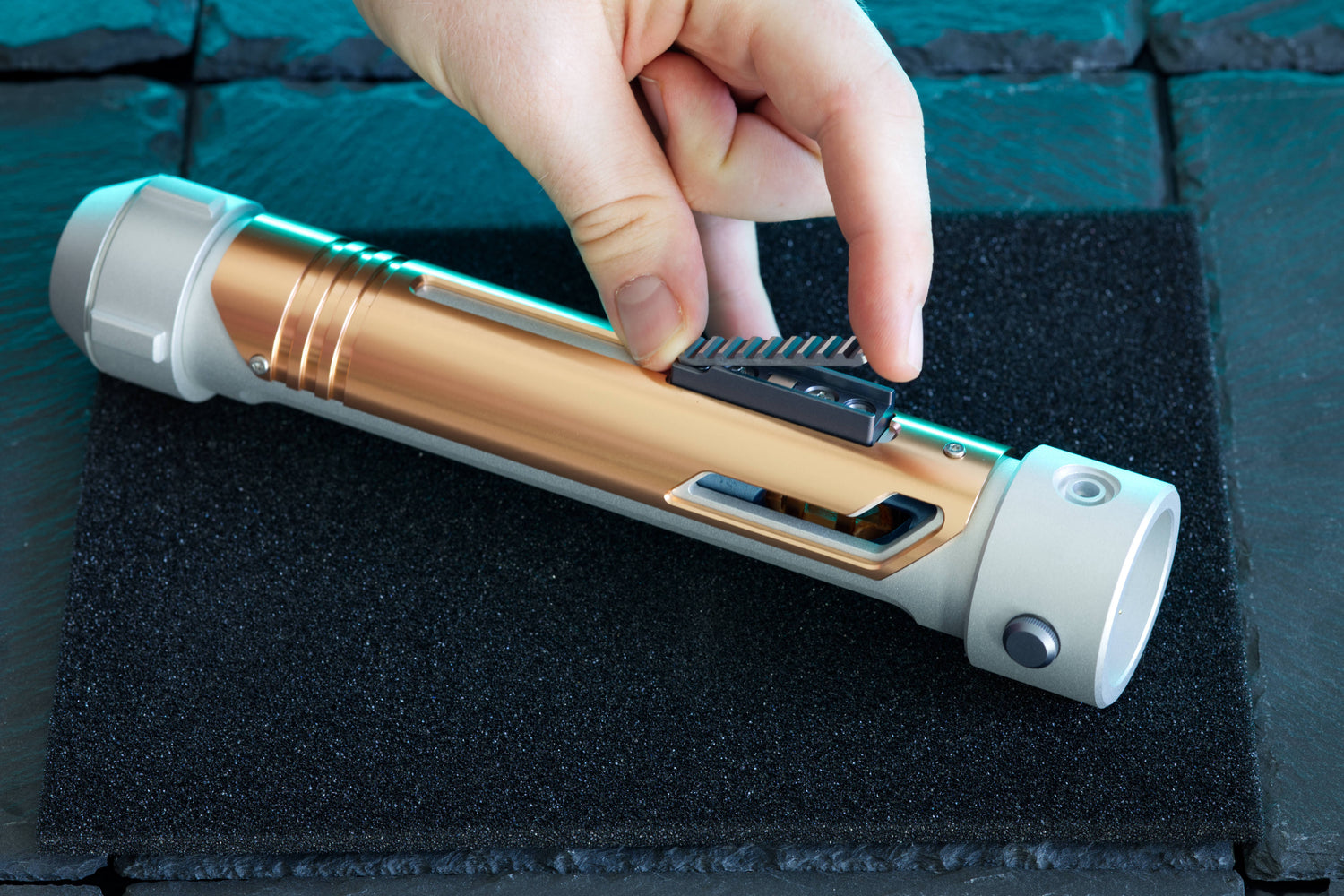

• Magnetic switchpanel
• Magnetic lock key which secures the emitter.
• The center of gravity is engineered to rest just below the tsuba with a blade inserted.
• Accompanied by a beautiful packaging box in matte white and custom print.
• Designed for a removable 18650 battery.

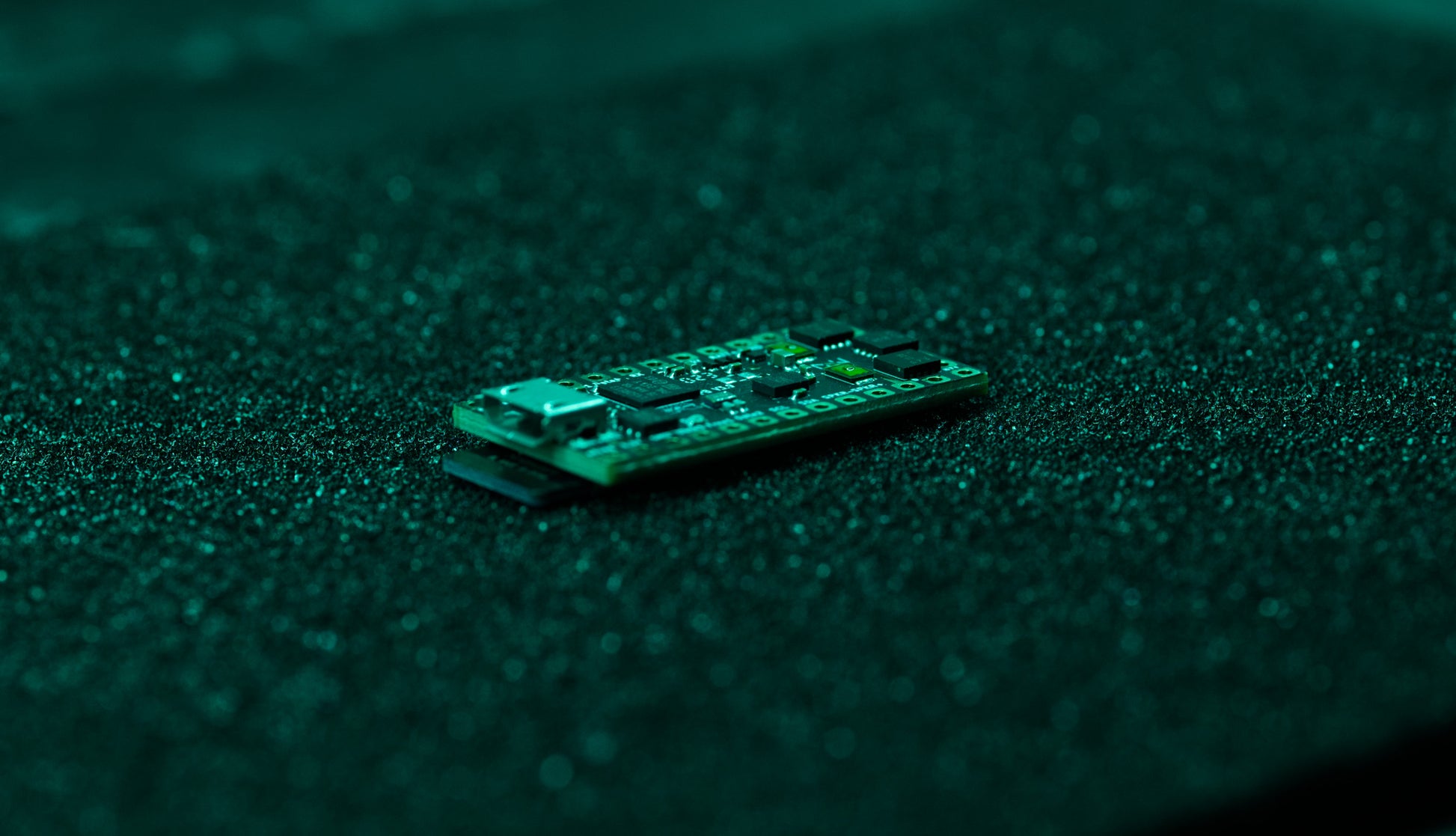

• Access to the SD card and usb hub.

Important notes:

• The Switchbox and panel is changing slightly. It will have raised walls to protect it from accidental side impacts and the panel will be ever so slightly less wide.
• I will share pictures along the way.
• The Philips screw securing the emitter accent part will be exchanged for either a hex or torx screw for aesthetic reasons.

To be honest, I was completely blown away by how this turned out. It is more magnificent and beautiful than I intended and expected.

I am happy to announce that we will add Duum to our lineup of high quality sabers offering yet another great design alongside the Verndari and the Nomad.

The celestials have converged, Nomad the dark side, Verndari the light side and Duum as the one in the middle.
